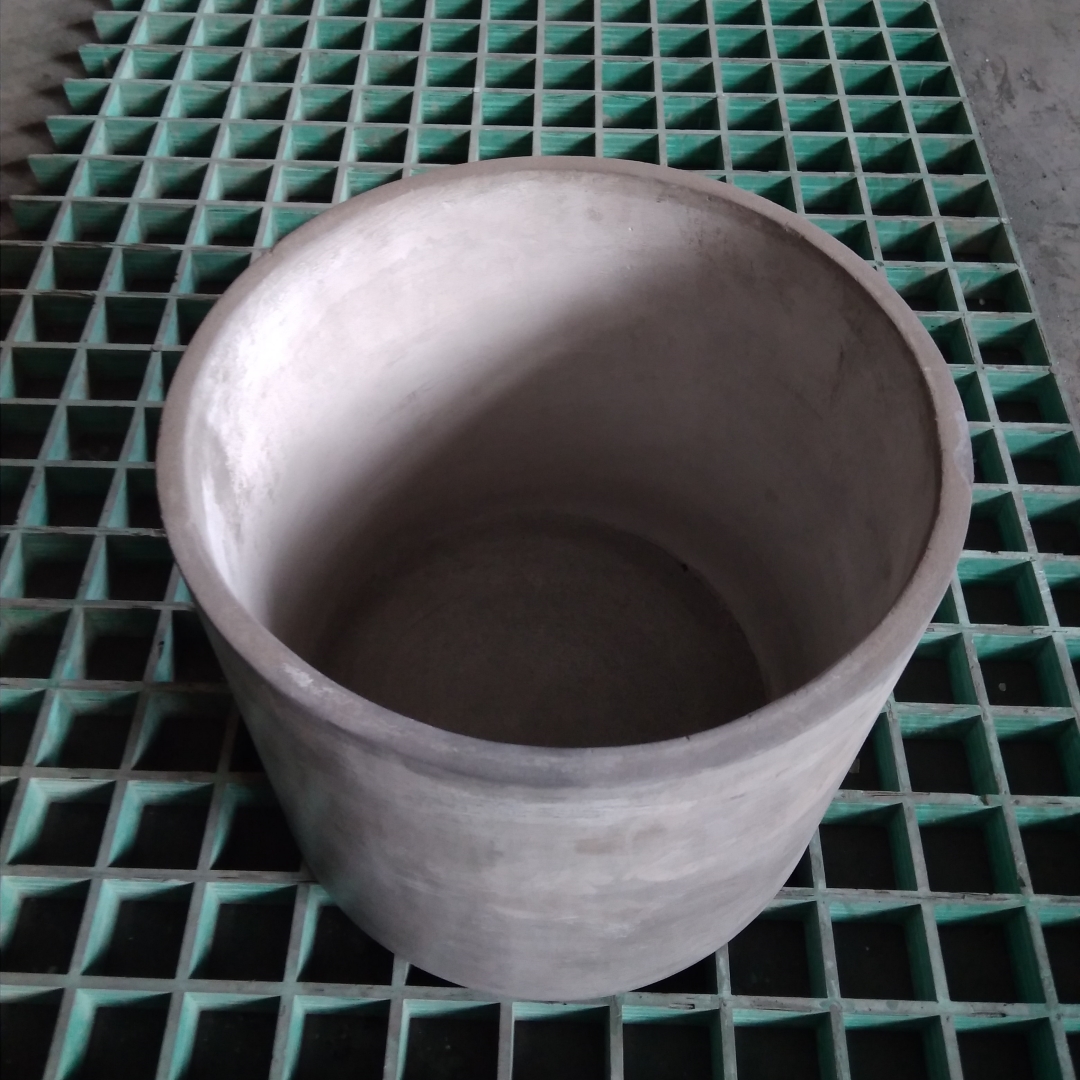

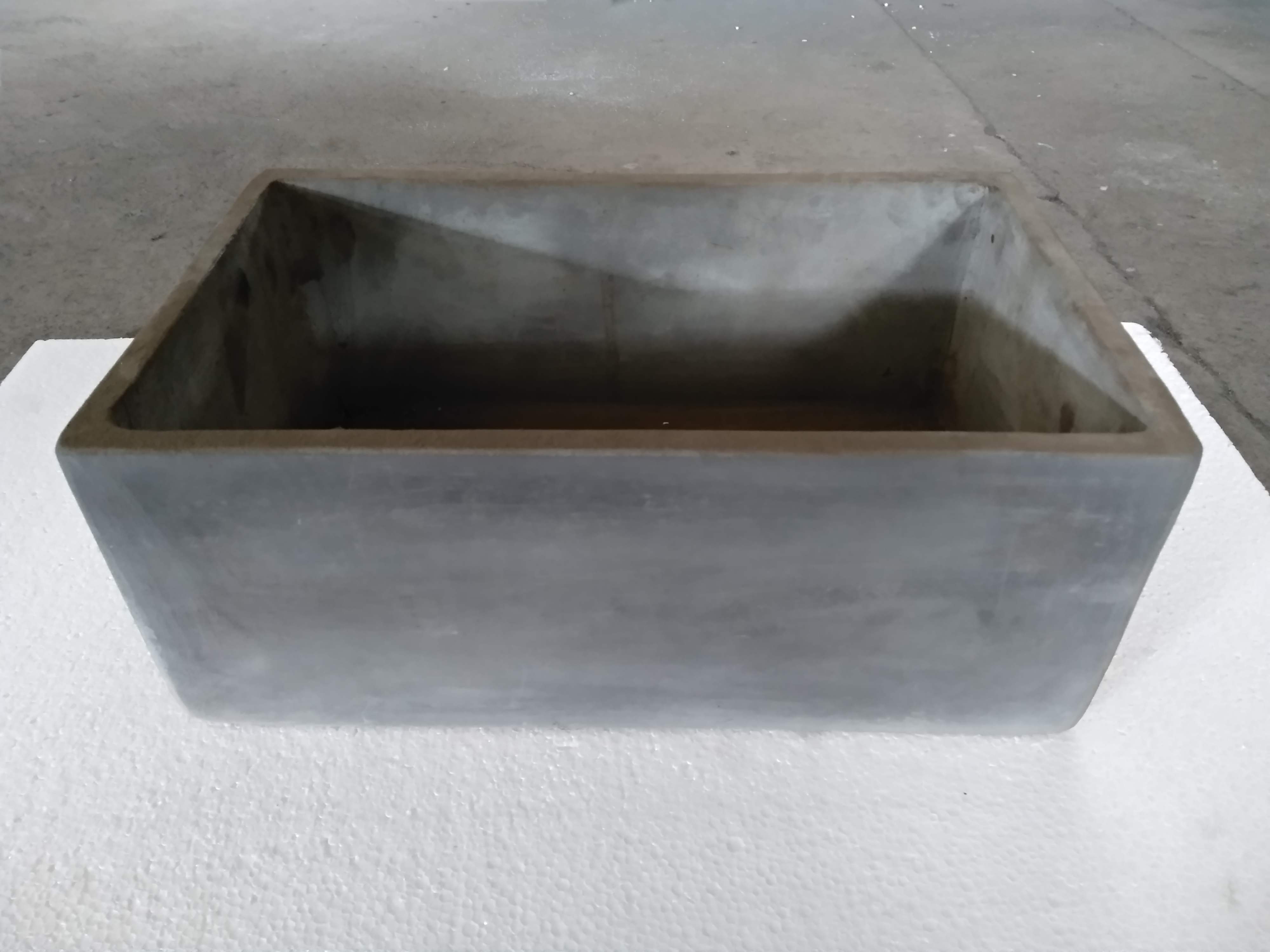

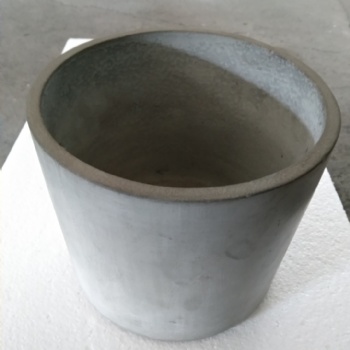

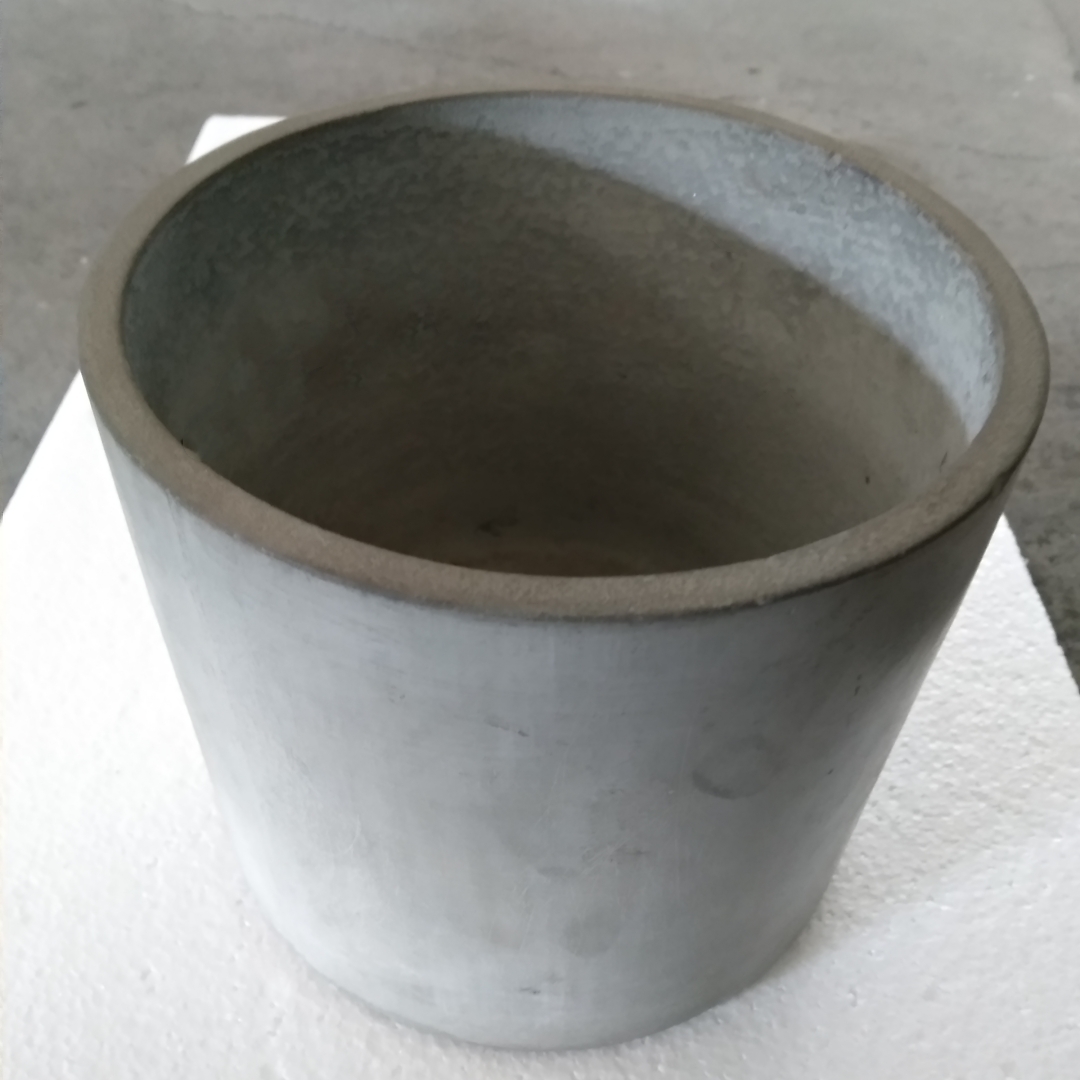

NSiC (Nitride Bonded Silicon Carbide) crucibles and saggers are premium refractory ceramic containers designed for high-temperature melting, sintering and thermal treatment processes. Manufactured by integral high-temperature sintering composite ceramic technology, they combine the exceptional thermal shock resistance of nitride and the high thermal conductivity, abrasion resistance and molten metal corrosion resistance of silicon carbide. Balancing reliable industrial performance and favorable cost, NSiC crucibles and saggers deliver higher cost performance than pure silicon nitride and pure silicon carbide products, serving as ideal upgrades for traditional alumina and clay refractory containers.
1. Excellent High Temperature Stability
Featuring stable high-temperature structural strength, the products support long-term continuous operation at 700℃–1350℃, without softening, deformation or structural failure. They adapt to frequent high-temperature sintering and melting cycles, fully meeting continuous industrial production demands.
2. Superior Molten Metal & Chemical Corrosion Resistance
The dense pore-free microstructure effectively resists erosion, penetration and adhesion of molten aluminum, zinc and various alloy liquids. It avoids metal liquid permeation, scaling and wall peeling, reduces product impurity contamination, and greatly improves the yield of castings and sintered parts.
3. Outstanding Thermal Shock Resistance
NSiC ceramic composite structure endows excellent anti-thermal shock performance, resisting cracking and damage caused by rapid heating and cooling. It effectively solves the fatal defect of ordinary refractory saggers and crucibles that are prone to fracture under temperature alternation.
4. High Thermal Conductivity & Energy Saving
Higher thermal conductivity than traditional refractory materials ensures uniform internal temperature and fast heat conduction. It shortens heating cycles, improves production efficiency and reduces energy consumption, bringing significant energy-saving benefits for mass production.
5. Long Service Life & Low Operating Cost
Compared with ordinary ceramic and refractory products, NSiC crucibles and saggers have 6–8 times longer service life, reducing frequent replacement downtime and labor costs. With more competitive pricing than pure high-end ceramic materials, they effectively lower overall production costs.
Material: NSiC (Nitride Bonded Silicon Carbide)
Max Working Temperature: 1350℃ (continuous operation)
Core Features: High temperature resistance, anti-thermal shock, anti-corrosion, anti-sticking metal, high thermal conductivity
Applicable Medium: Molten aluminum, molten zinc, alloy liquid, high-temperature sintering powder
Customization: Customizable size, shape, thickness and structure according to equipment requirements
Widely applied in non-ferrous metal melting, alloy casting, powder metallurgy, ceramic sintering, electronic material thermal treatment and industrial high-temperature furnace industries. Suitable for aluminum and zinc alloy melting, high-temperature product sintering and batch thermal processing, widely matched with various industrial resistance furnaces and melting furnaces.
1. NSiC ceramics are hard and brittle; avoid violent collision, extrusion and drop impact during handling and installation.
2. Apply gradient heating for first use to prevent thermal shock damage caused by sudden temperature rise.
3. Keep the inner wall clean; regularly remove surface oxides and residual metal to avoid affecting service life and product quality.
4. Do not operate under over-temperature conditions or bear excessive heavy pressure to prevent structural cracking.
5. Cool down gradually after use; avoid rapid cold water flushing to protect the ceramic structure.
We provide one-stop customized solutions for NSiC crucibles and saggers, supporting personalized production of special shapes and non-standard sizes. All products are strictly inspected before delivery with stable quality and reliable performance. We offer professional technical support, fast delivery and complete after-sales warranty service.
